Fasteners

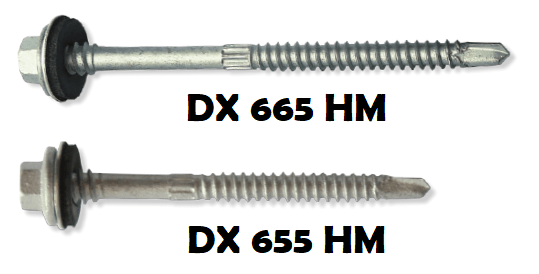

Crest Fixing (Purlins) – DX 650 / 665 HM

Category:

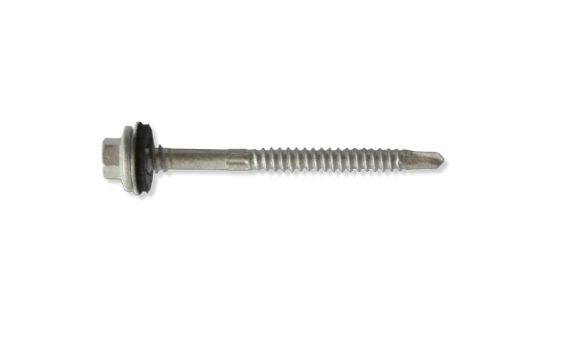

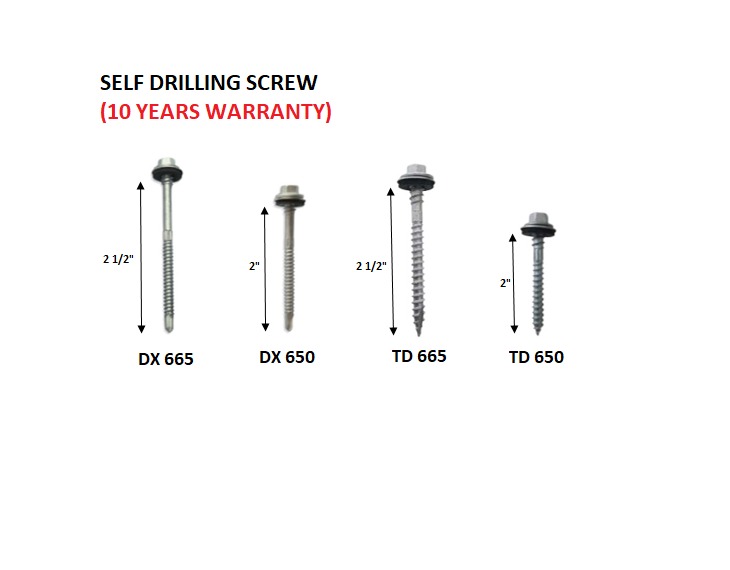

  • #12 x 2” Hexagonal head self-drilling screw (Diameter 6mm, Length 50mm) with washer
  • #12 x 2 1/2” Hexagonal head self-drilling screw (Diameter 6mm, Length 65mm) with washer
  • Drilling capacity 1mm – 6mm

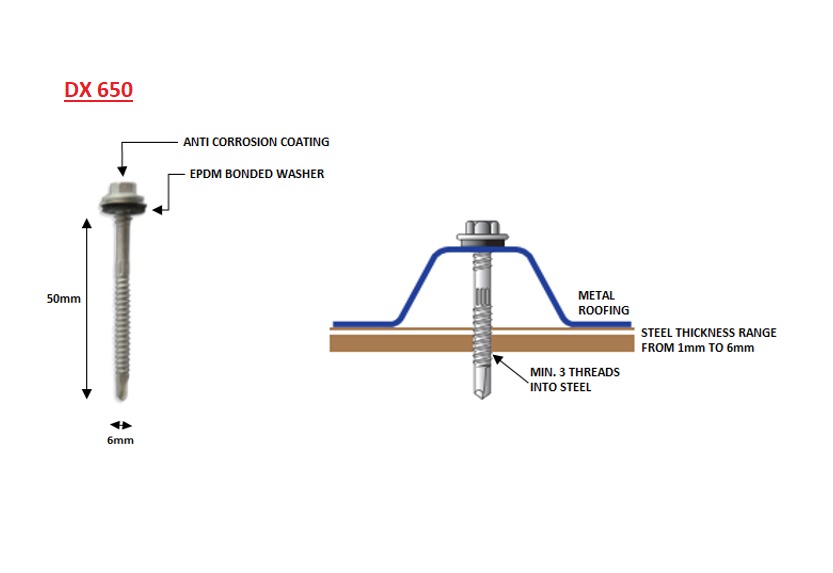

  • Suitable for securing at the top of the profile against the steel purlin and away from the path of the waterflow
  • Comes with 10 years warranty

DOWNLOAD CATALOG
Application

DX650

M.S Purlin 1-6 mm Light Gauge below 1 mm
Without Insulation: DX 650 HM CR TD 650 HM CR
DX 650 HM C3 TD 650 HM C3
 With Insulation: DX 665 HM CR TD 665 HM CR
DX 665 HM C3 TD 665 HM C3
